09330062716 | Harting

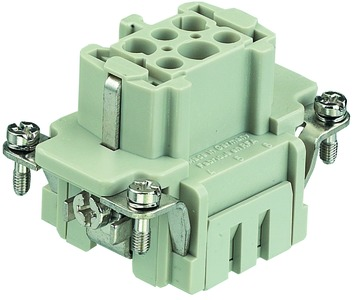

Socket contact insert, 6B, 6 pole, equipped, cage clamp terminal, with PE contact, 09330062716
Unit Price (€ / pc.)
12.9710 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
12.97 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9710 €
10 pcs.
11.9357 €
50 pcs.
10.8647 €
100 pcs.
9.7699 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contact insert, 09 33 006 2716, Harting
Insert, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.14-2.5 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Socket Insert
- Material: Thermoplastic
- Shell size: 6B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 500 V
- PE contact: Yes
Technical specifications
| Ausführung | Buchseneinsatz | |
| Bestückung | bestückt | |
| Gehäusegröße | 6B | |
| Kontaktanschluss | Käfigzugfederanschluss | |
| PE-Kontakt | Yes | |
| Polzahl | 6-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
