09330102601 | Harting

Name: Pin contact insert, 10B, 10 pole, equipped, screw connection, with PE contact, 09330102601
Brand: Harting
SKU: 42F120
Price: 13.65 EUR
Availability: InStock

Pin contact insert, 10B, 10 pole, equipped, screw connection, with PE contact, 09330102601

Order No.: 42F120

EAN: 4099889769494

MPN:

09330102601

09 33 010 2601

Series: Han E/ES

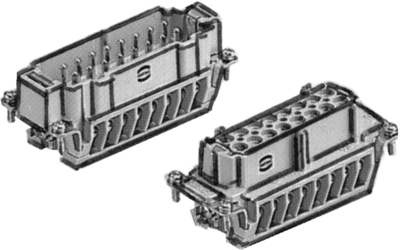

09330102601 Harting Contact Inserts Image 2

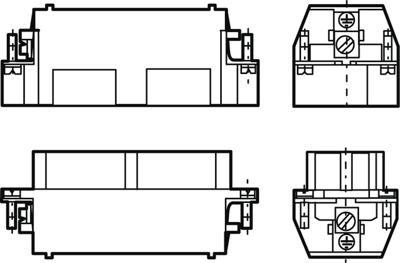

09330102601 Harting Contact Inserts Image 3

Image may differ

Key Specification:

Version pin insert

Shell size 10B

Additional parts equipped

Contact connection screw connection

Pin number 10 pole

Ordering Information:

Contacts are part of the delivery content

Show 4 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

13.6493 € *

Available: 4 pcs.

Leadtime: 9 Weeks **

Total Price:

13.65 € *

Price list

Quantity

Price per unit*

1 pcs.

13.6493 €

10 pcs.

12.0190 €

50 pcs.

11.1979 €

150 pcs.

10.7100 €

500 pcs.

10.1507 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09330102601, Harting

Insert, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.75 - 2.5 mm², Copper alloy, Silver plated

Technical specifications

	Version	pin insert
	Additional parts	equipped
	Shell size	10B
	Contact connection	screw connection
	PE contact	Yes
	Pin number	10 pole

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Lead
