09330102776 | Harting

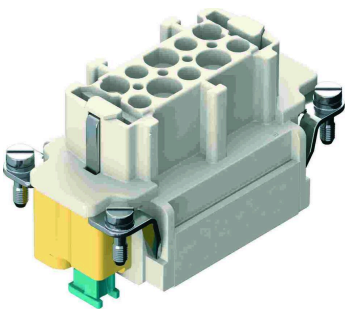

Name: Socket contact insert, 10B, 10 pole, cage clamp terminal, with PE contact, 09330102776
Brand: Harting
SKU: 42F8689
Price: 13.33 EUR
Availability: OutOfStock

Socket contact insert, 10B, 10 pole, cage clamp terminal, with PE contact, 09330102776

Order No.: 42F8689

EAN: 5713140186132

MPN:

09330102776

Han ES 10B PE-CC Female

Series: Han ES

Image may differ

Key Specification:

Version Buchseneinsatz

Shell size 10B

Contact connection Käfigzugfederanschluss

Pin number 10-polig

Show 19 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

13.328 € *

Available: 0 pcs.

Leadtime: 16 Weeks **

Total Price:

13.33 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Socket contact insert, 09330102776, Harting

The 09330102776 is a female insert cage-clamp termination that has a rated current of 16 A and is suitable for conductor cross-sections ranging from 0.14 to 2.5 mm².

Technical specifications

	Version	Buchseneinsatz
	Shell size	10B
	Contact connection	Käfigzugfederanschluss
	PE contact	Yes
	Pin number	10-polig

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	CN
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No

1 item in 19 variations
