09330104629 | Harting

Pin contact insert, 10B, 10 pole, equipped, cage clamp terminal, with PE contact, 09330104629

Order No.: 44F3094
EAN: 4099889774498
MPN:
09330104629
09 33 010 4629
Series: Han ES
Harting
09330104629 Harting Contact Inserts

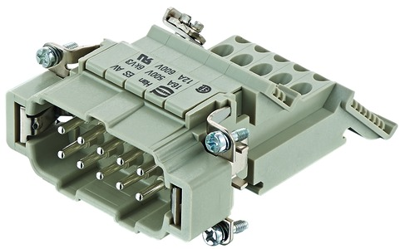

Image may differ
Unit Price (€ / pc.)
31.4398 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
31.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
31.4398 €

Contact insert, 09 33 010 4629, Harting

Insert, Terminal block connector, Cage-clamp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.14-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 10B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version pin insert
Additional parts equipped
Shell size 10B
Contact connection cage clamp terminal
PE contact Yes
Pin number 10 pole
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
