09330104639 | Harting

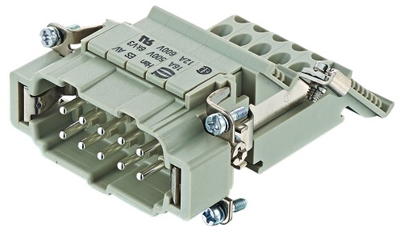

Pin contact insert, 10B, 10 pole, equipped, cage clamp terminal, with PE contact, 09330104639

Order No.: 44F3097
EAN: 4099889774528
MPN:
09330104639
09 33 010 4639
Series: Han ES
Harting
09330104639 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
34.391 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
34.39 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
34.391 €

Contact insert, 09 33 010 4639, Harting

Insert, Terminal block connector, Cage-clamp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.14-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 10B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version pin insert
Additional parts equipped
Shell size 10B
Contact connection cage clamp terminal
PE contact Yes
Pin number 10 pole
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
