09330104729 | Harting

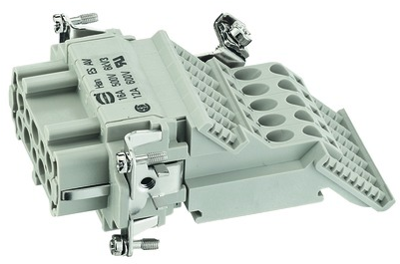

Socket contact insert, 10B, 10 pole, equipped, cage clamp terminal, with PE contact, 09330104729

Order No.: 44F3100
EAN: 4099889774559
MPN:
09330104729
09 33 010 4729
Series: Han ES
09330104729 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
32.7726 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
32.77 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
32.7726 €

Contact insert, 09 33 010 4729, Harting

Insert, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.14-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 10B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version Buchseneinsatz
Additional parts bestückt
Shell size 10B
Contact connection Käfigzugfederanschluss
PE contact Yes
Pin number 10-polig
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
