09330104736 | Harting

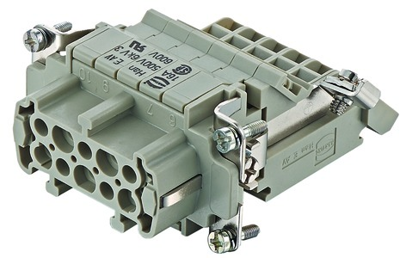

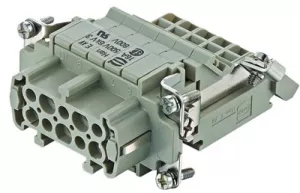

Socket contact insert, 10B, 10 pole, equipped, screw connection, with PE contact, 09330104736

Order No.: 44F3102
EAN: 4099889774573
MPN:
09330104736
09 33 010 4736
Series: Han E AV
Harting
09330104736 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
65.8308 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
65.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
65.8308 €

Contact insert, 09 33 010 4736, Harting

Insert, Terminal block connector, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.2-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 10B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version socket insert
Additional parts equipped
Shell size 10B
Contact connection screw connection
PE contact Yes
Pin number 10 pole
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
