09330104739 | Harting

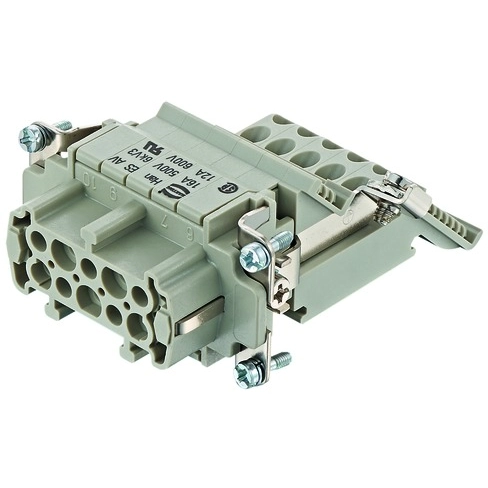

Socket contact insert, 10B, 10 pole, equipped, cage clamp terminal, with PE contact, 09330104739
Unit Price (€ / pc.)
32.7726 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Contact insert, 09 33 010 4739, Harting
Insert, Terminal block connector, Cage-clamp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.14-2.5 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Socket Insert
- Material: Thermoplastic
- Shell size: 10B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 500 V
- PE contact: Yes
- Colour: gray
Technical specifications
| Ausführung | Buchseneinsatz | |
| Bestückung | bestückt | |
| Gehäusegröße | 10B | |
| Kontaktanschluss | Käfigzugfederanschluss | |
| PE-Kontakt | Yes | |
| Polzahl | 10-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
