09330162601 | Harting
Pin contact insert, 16B, 16 pole, equipped, screw connection, with PE contact, 09330162601
Unit Price (€ / pc.)
22.6100 € *
Available: 3 pcs.
Leadtime: 9 Weeks **
Total Price:
22.61 € *
Price list
Quantity
Price per unit*
1 pcs.
22.6100 €
10 pcs.
19.9087 €
50 pcs.
18.5521 €
150 pcs.
17.7191 €
500 pcs.
16.8147 €
*incl. VAT plus shipping costs
**Subject to prior sale

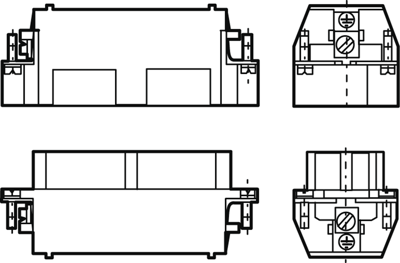

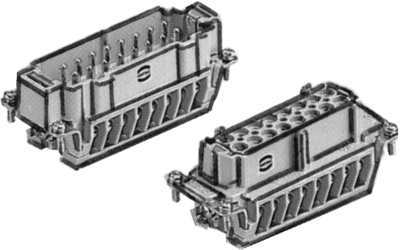

Contact insert, 09330162601, Harting
Insert, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 16 B, Contacts: 16, Conductor cross-section: 0.75 - 2.5 mm², Copper alloy, Silver plated
Technical specifications
| Version | pin insert | |
| Additional parts | equipped | |
| Shell size | 16B | |
| Contact connection | screw connection | |
| PE contact | Yes | |
| Pin number | 16 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
