09330164626 | Harting

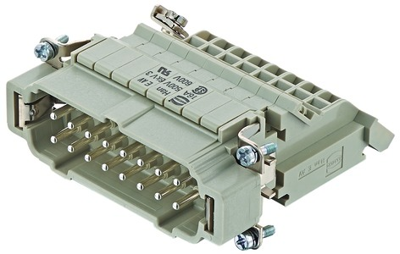

Pin contact insert, 16B, 16 pole, equipped, screw connection, with PE contact, 09330164626

Order No.: 44F3132
EAN: 4099889774757
MPN:
09330164626
09 33 016 4626
Series: Han E
09330164626 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
52.7527 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
52.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
52.7527 €

Contact insert, 09 33 016 4626, Harting

Insert, Terminal block connector, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 16 B, Contacts: 16, Conductor cross-section: 0.2-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version Stifteinsatz
Additional parts bestückt
Shell size 16B
Contact connection Schraubanschluss
PE contact Yes
Pin number 16-polig
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
