09330242701 | Harting

Name: Socket contact insert, 24B, 24 pole, equipped, screw connection, with PE contact, 09330242701
Brand: Harting
SKU: 42F174
Price: 27.72 EUR
Availability: InStock

Socket contact insert, 24B, 24 pole, equipped, screw connection, with PE contact, 09330242701

Order No.: 42F174

EAN: 4099889769609

MPN:

09330242701

09 33 024 2701

Series: Han E/ES

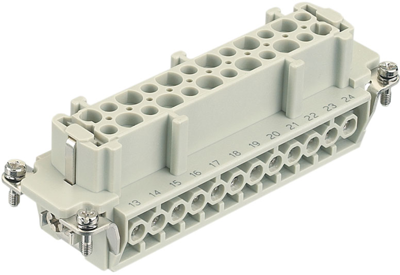

09330242701 Harting Contact Inserts Image 2

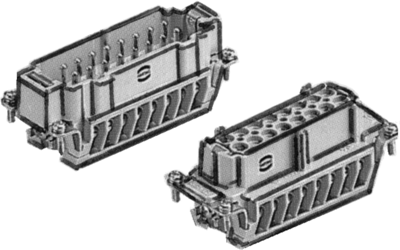

09330242701 Harting Contact Inserts Image 3

Image may differ

Key Specification:

Version Buchseneinsatz

Shell size 24B

Additional parts bestückt

Contact connection Schraubanschluss

Pin number 24-polig

Ordering Information:

Kontakte im Lieferumfang enthalten

Show 5 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

27.7151 € *

Available: 3 pcs.

Leadtime: 9 Weeks **

Total Price:

27.72 € *

Price list

Quantity

Price per unit*

1 pcs.

27.7151 €

5 pcs.

26.0610 €

15 pcs.

25.0614 €

50 pcs.

23.9428 €

150 pcs.

22.9432 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09330242701, Harting

Insert, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 0.75 - 2.5 mm², Copper alloy, Silver plated

Technical specifications

	Version	Buchseneinsatz
	Additional parts	bestückt
	Shell size	24B
	Contact connection	Schraubanschluss
	PE contact	Yes
	Pin number	24-polig

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

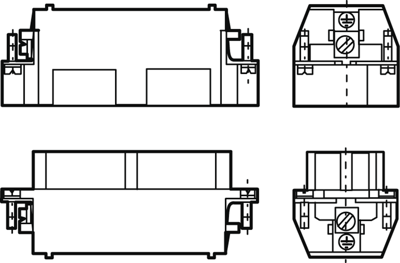

Maßzeichnung - DE/EN Maßzeichnung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	DE
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	No
Substance description	Blei
