09330242791 | Harting

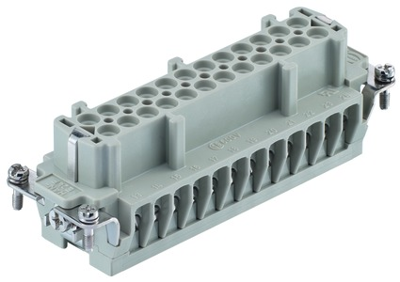

Socket contact insert, 24B, 24 pole, equipped, screw connection, with PE contact, 09330242791
Unit Price (€ / pc.)
293.2755 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Contact insert, 09 33 024 2791, Harting
Insert, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 24 B, Contacts: 24, Conductor cross-section: 1-2.5 mm²
Technical Data
- Contact design: Socket Insert
- Material: Thermoplastic
- Shell size: 24B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 400 V
- PE contact: Yes
- Colour: gray
Technical specifications
| Version | Buchseneinsatz | |
| Additional parts | bestückt | |
| Shell size | 24B | |
| Contact connection | Schraubanschluss | |
| PE contact | Yes | |
| Pin number | 24-polig |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
