09338162603 | Harting
Pin contact insert, 16B, 16 pole, equipped, screw connection, with PE contact, 09338162603
Unit Price (€ / pc.)
55.5492 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

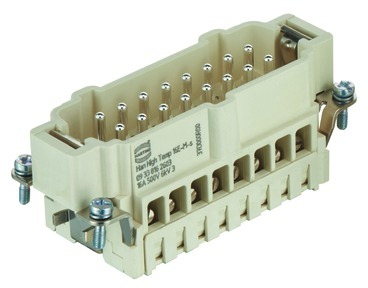

Contact insert, 09 33 816 2603, Harting
Insert, Screw termination, Male, Liquid crystal polymer (LCP), Rated current: 16 A, Size: 16 B, Contacts: 16, Conductor cross-section: 0.75-2.5 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 16B
- min. Operating temperature: -40 °C
- max. Operating temperature: 200 °C
- Rated current: 16 A
- Rated voltage: 500 V
- PE contact: Yes
Technical specifications
| Ausführung | Stifteinsatz | |
| Bestückung | bestückt | |
| Gehäusegröße | 16B | |
| Kontaktanschluss | Schraubanschluss | |
| PE-Kontakt | Yes | |
| Polzahl | 16-polig |
Download
Logistics
| Ursprungsland | RO |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
