09340032602 | Harting

Pin contact insert, 10B, 5 pole, unequipped, crimp connection, with PE contact, 09340032602

Order No.: 44F3268
EAN: 4099889775433
MPN:
09340032602
09 34 003 2602
Series: Han Hv E
Harting

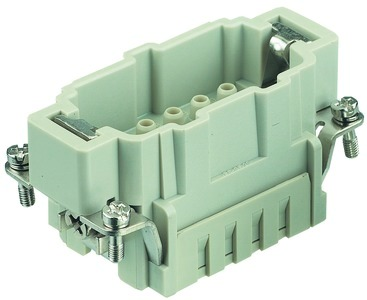

09340032602 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
19.635 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
19.64 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
19.635 €

Contact insert, 09 34 003 2602, Harting

Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 B, Contacts: 3, + 2 additional relay contacts, Conductor cross-section: 0.5-4 mm²

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 10B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 830 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version pin insert
Additional parts unequipped
Shell size 10B
Contact connection crimp connection
PE contact Yes
Pin number 5 pole
Logistics
Country of origin DE
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
