09340102701 | Harting

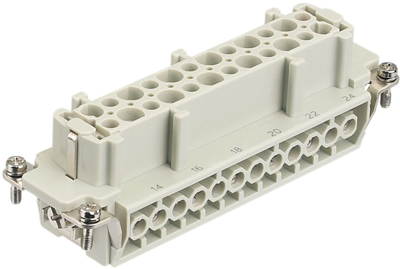

Socket contact insert, 24B, 12 pole, equipped, screw connection, with PE contact, 09340102701

Order No.: 43F618
EAN: 4099889770261
MPN:
09340102701
09 34 010 2701
Series: Han Hv E
Harting
09340102701 Harting Contact Inserts
Image may differ
Print
Key Specification:
Version socket insert
Shell size 24B
Additional parts equipped
Contact connection screw connection
Pin number 12 pole

Ordering Information:

Contacts are part of the delivery content
Show 7 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
19.04 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Add to Cart
Total Price:
19.04 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
19.04 €
Description
Technical specifications
Download
Logistics
Compliance
Accessory
Variations

Contact insert, 09340102701, Harting

Insert, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌16 A, Size: 24 B, Contacts: 12, Conductor cross-section: 0.75 - 2.5 mm², Copper alloy, Silver plated
Technical specifications
Version socket insert
Additional parts equipped
Shell size 24B
Contact connection screw connection
PE contact Yes
Pin number 12 pole
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
