09380052602 | Harting

Pin contact insert, 24B, 5 pole, equipped, axial screw connection, with PE contact, 09380052602

Order No.: 44F3556
EAN: 4099889775778
MPN:
09380052602
09 38 005 2602
Series: Han Com
Harting
09380052602 Harting Contact Inserts

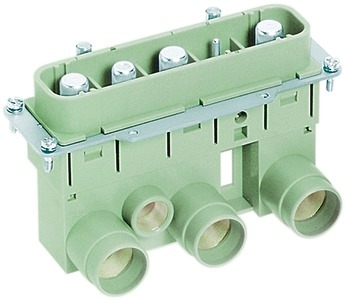

Image may differ
Unit Price (€ / pc.)
170.9911 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Total Price:
170.99 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
170.9911 €

Contact insert, 09 38 005 2602, Harting

Insert, Axial screw termination / screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 200 A, Size: 24 B, Contacts: 3, + 2 additional signal contacts, Conductor cross-section: 35-70 mm², 0.5-2.5 mm² Signal, 16-35 mm² PE, Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 24B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 200 A
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version pin insert
Additional parts equipped
Shell size 24B
Contact connection axial screw connection
PE contact Yes
Pin number 5 pole
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
