09380052722 | Harting

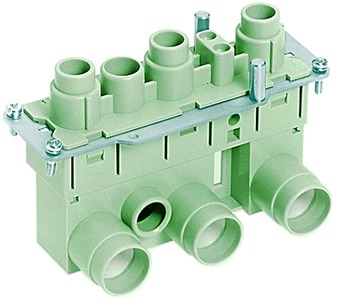

Socket contact insert, 24B, 3 pole, equipped, axial screw connection, 09380052722
Unit Price (€ / pc.)
157.4727 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Contact insert, 09 38 005 2722, Harting
Insert, Axial screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 200 A, Size: 24 B, Contacts: 3, Conductor cross-section: 35-70 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Socket Insert
- Material: Thermoplastic
- Shell size: 24B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 200 A
- PE contact: No
- Colour: gray
Technical specifications
| Version | socket insert | |
| Additional parts | equipped | |
| Shell size | 24B | |
| Contact connection | axial screw connection | |
| PE contact | No | |
| Pin number | 3 pole |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
