09380082602 | Harting

Pin contact insert, 10B, 8 pole, equipped, axial screw connection, with PE contact, 09380082602

Order No.: 44F3564
EAN: 4099889775853
MPN:
09380082602
09 38 008 2602
Series: Han Com
Harting

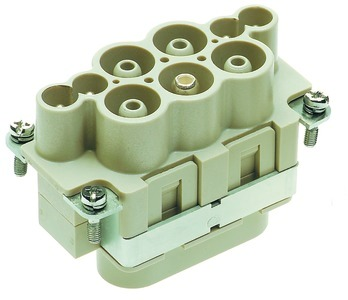

09380082602 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
97.4491 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
97.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
97.4491 €

Contact insert, 09 38 008 2602, Harting

Insert, Axial screw termination / cage-clamp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 63 A, Size: 10 B, Contacts: 4, + 4 additional signal contacts, Conductor cross-section: 10-22 mm², 0.14-2.5 mm² Signal, Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 10B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 63 A
  • Rated voltage: 690 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version pin insert
Additional parts equipped
Shell size 10B
Contact connection axial screw connection
PE contact Yes
Pin number 8 pole
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
