09380122651 | Harting

Pin contact insert, 24B, 12 pole, equipped, axial screw connection, with PE contact, 09380122651

Order No.: 44F3571
EAN: 4099889775921
MPN:
09380122651
09 38 012 2651
Series: Han Com
Harting

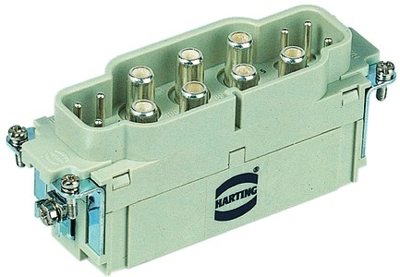

09380122651 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
95.8783 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
95.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
95.8783 €

Contact insert, 09 38 012 2651, Harting

Insert, Axial screw termination / screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 100 A, Size: 24 B, Contacts: 6, + 6 additional signal contacts, Conductor cross-section: 16-35 mm², 0.2-2.5 mm² Signal, Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 24B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 100 A
  • Rated voltage: 690 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version pin insert
Additional parts equipped
Shell size 24B
Contact connection axial screw connection
PE contact Yes
Pin number 12 pole
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
