09380182702 | Harting

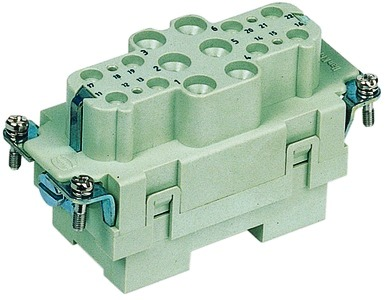

Socket contact insert, 16B, 18 pole, equipped, axial screw connection, with PE contact, 09380182702

Order No.: 44F3582
EAN: 4099889775976
MPN:
09380182702
09 38 018 2702
Series: Han Com
09380182702 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
90.1663 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
90.17 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
90.1663 €

Contact insert, 09 38 018 2702, Harting

Insert, Axial screw termination / screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: 16 B, Contacts: 6, + 12 additional signal contacts, Conductor cross-section: 6-10 mm², 0.2-2.5 mm² Signal, Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 40 A
  • Rated voltage: 690 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Version Buchseneinsatz
Additional parts bestückt
Shell size 16B
Contact connection Axial-Schraubanschluss
PE contact Yes
Pin number 18-polig
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
