09380423001 | Harting

Name: Pin contact insert, 16B, 42 pole, equipped, screw connection, with PE contact, 09380423001
Brand: Harting
SKU: 42F1981
Price: 32.57 EUR
Availability: OutOfStock

Pin contact insert, 16B, 42 pole, equipped, screw connection, with PE contact, 09380423001

Order No.: 42F1981

EAN: 4099889769784

MPN:

09380423001

09 38 042 3001

Series: Han Com

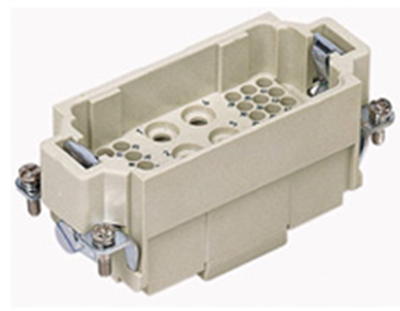

09380423001 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Ausführung Stifteinsatz

Gehäusegröße 16B

Bestückung bestückt

Kontaktanschluss Schraubanschluss

Polzahl 42-polig

Ordering Information:

Kontakte im Lieferumfang enthalten

Show 22 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

32.5703 € *

Available: 0 pcs.

Leadtime: 13 Weeks **

Add to Cart

Total Price:

32.57 € *

Price list

Quantity

Price per unit*

1 pcs.

32.5703 €

5 pcs.

30.6068 €

15 pcs.

29.4406 €

50 pcs.

24.7163 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09380423001, Harting

Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌40 A, Size: 16 B, Contacts: 42, Conductor cross-section: 1.5 - 6 mm², 0.14 - 2.5 mm²

Technical specifications

	Ausführung	Stifteinsatz
	Bestückung	bestückt
	Gehäusegröße	16B
	Kontaktanschluss	Schraubanschluss
	PE-Kontakt	Yes
	Polzahl	42-polig

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

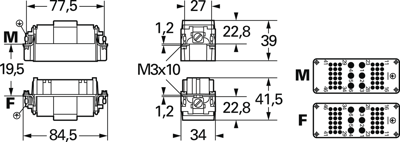

Maßzeichnung - EN Maßzeichnung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
