09380423101 | Harting

Name: Socket contact insert, 16B, 42 pole, equipped, screw connection, with PE contact, 09380423101
Brand: Harting
SKU: 42F1982
Price: 24.31 EUR
Availability: OutOfStock

Socket contact insert, 16B, 42 pole, equipped, screw connection, with PE contact, 09380423101

Order No.: 42F1982

EAN: 4099889769791

MPN:

09380423101

09 38 042 3101

Series: Han Com

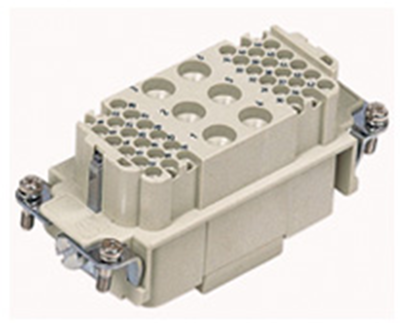

09380423101 Harting Contact Inserts Image 2

Image may differ

Key Specification:

Version socket insert

Shell size 16B

Additional parts equipped

Contact connection screw connection

Pin number 42 pole

Ordering Information:

Contacts are part of the delivery content

Show 21 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

24.3117 € *

Available: 0 pcs.

Leadtime: 14 Weeks **

Add to Cart

Total Price:

24.31 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Contact insert, 09380423101, Harting

Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: ‌40 A, Size: 16 B, Contacts: 42, Conductor cross-section: 1.5 - 6 mm², 0.14 - 2.5 mm²

Technical specifications

	Version	socket insert
	Additional parts	equipped
	Shell size	16B
	Contact connection	screw connection
	PE contact	Yes
	Pin number	42 pole

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

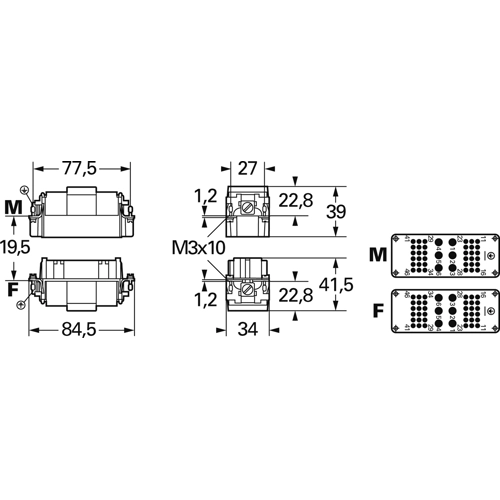

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	DE
Customs tariff number	85389099

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
