09020008484 | Harting

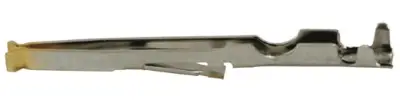

Receptacle, 0.09-0.5 mm², AWG 28-20, crimp connection, noble metal, 09020008484
Unit Price (€ / pc.)
0.7140 € *
Available: 330 pcs.
Leadtime: 1 Week **
Total Price:
0.71 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7140 €
50 pcs.
0.5950 €
250 pcs.
0.5236 €
1000 pcs.
0.4641 €
*incl. VAT plus shipping costs
**Subject to prior sale
Corresponding crimp contact, type 0902.
Single-contact for conductor cross-sections from 0.09 to 0.5 mm (AWG 28 to 20); Insulation diameter: 0.7 to 1.5 mm. Stripping length: 3.5 ±0.5 mm.
Type: 0008484, crimp contact
Technical specifications
| Ausführung | Buchsenkontakt | |
| AWG-Leiterquerschnitt | AWG 28-20 | |
| Isolationsdurchmesser | 0,7-1,5 mm | |
| Kontaktanschluss | Crimpanschluss | |
| Kontaktmaterial | Kupferlegierung | |
| Kontaktoberfläche | edelmetall | |
| Leiterquerschnitt | 0,09-0,5 mm² |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
