09560008165 | Harting

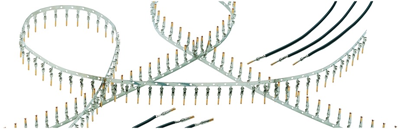

Name: Pin contact, 0.14-0.22 mm², AWG 26-24, crimp connection, gold-plated, 09560008165
Brand: Harting
SKU: 44F5227
Price: 104.02 EUR
Availability: OutOfStock

Pin contact, 0.14-0.22 mm², AWG 26-24, crimp connection, gold-plated, 09560008165

Order No.: 44F5227

EAN: 4099889657593

MPN:

09560008165

09 56 000 8165

Series: D-Sub

Image may differ

Key Specification:

Version Stiftkontakt

Cable cross-section 0,14-0,22 mm²

AWG cross-section AWG 26-24

Contact connection Crimpanschluss

Contact material Kupferlegierung

Show 70 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

104.0179 € *

Available: 0 pcs.

Leadtime: 1 Week **

Total Price:

104.02 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Pin contact, 09560008165, Harting

Crimp contact, Male, Copper alloy, Conductor cross-section: 0.14 - 0.22 mm², AWG 26 - 24

Technical specifications

	Version	Stiftkontakt
	AWG cross-section	AWG 26-24
	Contact connection	Crimpanschluss
	Contact material	Kupferlegierung
	contact surface	vergoldet
	Cable cross-section	0,14-0,22 mm²

Show similar products 0

Download

Konformitätsdeklaration - EN Konformitätsdeklaration

Maßzeichnung - EN Maßzeichnung

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Country of origin	CN
Customs tariff number	85366990

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
