09551666821741 | Harting

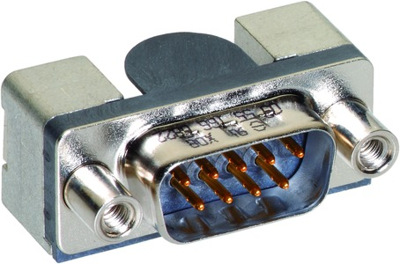

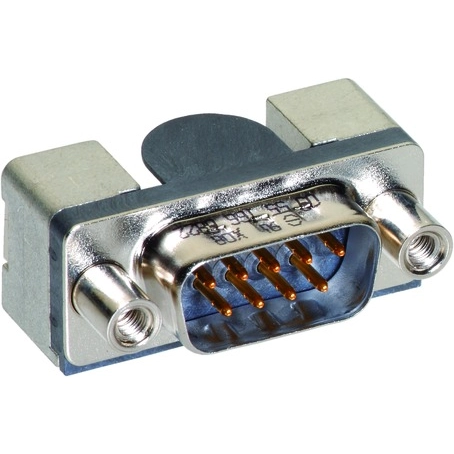

D-Sub plug, 9 pole, standard, equipped, angled, solder pin, 09551666821741
Unit Price (€ / pck.)
463.4217 € *
Available: 0 pck.
Leadtime: 8 Weeks **
D-Sub plug, 09551666821741, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Shell material: Nickel-plated
- Contact material: Phosphorus bronze
- Performance level: 2
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Anforderungsstufe | 2 | |
| Ausführung | Stiftleiste | |
| Befestigung (Rückseitig) | Durchgangsloch | |
| Bestückung | bestückt | |
| Kontaktanschluss | Einlötstift | |
| Montage | abgewinkelt | |
| Polbild | Standard | |
| Polzahl | 9-polig | |
| Rastermaß | 2.76 mm | |
| Verriegelung | Gewindeschraube M3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
