09561004704 | Harting

D-Sub socket, 15 pole, high density, equipped, straight, solder pin, 09561004704

Order No.: 44F5247
EAN: 4099889788792
MPN:
09561004704
09 56 100 4704
Series: D-Sub
09561004704 Harting D-Sub Connectors

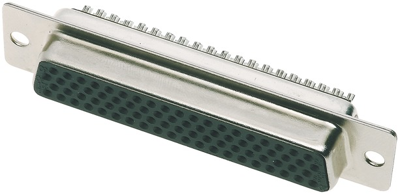

Image may differ
Unit Price (€ / pc.)
1.7374 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
1.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.7374 €

D-Sub socket, 09561004704, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Shell material: Steel, nickel-plated
  • Contact material: Copper alloy

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Performance level 3
Version Buchsenleiste
Attachment (rear panel) Durchgangsloch
Additional parts bestückt
Contact connection Einlötstift
Assembly gerade
Pole image High density
Pin number 15-polig
Grid 2.29 mm
Type of locking Durchgangsloch
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
