09562005601 | Harting

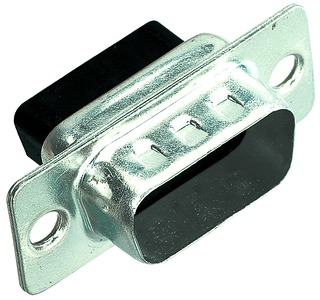

D-Sub plug, 26 pole, high density, unequipped, straight, crimp connection, 09562005601

Order No.: 44F5273
EAN: 4099889789034
MPN:
09562005601
09 56 200 5601
Series: D-Sub
09562005601 Harting D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
2.2729 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
2.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.2729 €

D-Sub plug, 09562005601, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Shell material: Steel, nickel-plated
  • Contact material: Copper alloy

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Version Stiftleiste
Attachment (rear panel) Durchgangsloch
Additional parts unbestückt
Contact connection Crimpanschluss
Assembly gerade
Pole image High density
Pin number 26-polig
Grid 2.29 mm
Type of locking Durchgangsloch
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
