09563515513 | Harting

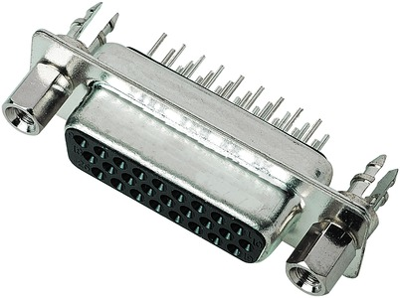

D-Sub socket, 44 pole, high density, equipped, straight, solder pin, 09563515513
Unit Price (€ / pc.)
9.6152 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
D-Sub socket, 09563515513, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Shell material: Steel, nickel-plated
- Contact material: Copper alloy
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Performance level | 1 | |
| Version | Buchsenleiste | |
| Attachment (rear panel) | Durchgangsloch | |
| Additional parts | bestückt | |
| Contact connection | Einlötstift | |
| Assembly | gerade | |
| Pole image | High density | |
| Pin number | 44-polig | |
| Grid | 2.29 mm | |
| Type of locking | Gewindeschraube 4-40 UNC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
