09564005601 | Harting
D-Sub plug, 62 pole, high density, unequipped, straight, crimp connection, 09564005601
Unit Price (€ / pc.)
8.1039 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

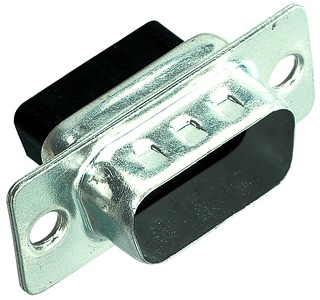

D-Sub plug, 09564005601, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Shell material: Steel, nickel-plated
- Contact material: Copper alloy
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Version | Stiftleiste | |
| Attachment (rear panel) | Durchgangsloch | |
| Additional parts | unbestückt | |
| Contact connection | Crimpanschluss | |
| Assembly | gerade | |
| Pole image | High density | |
| Pin number | 62-polig | |
| Grid | 2.41 mm | |
| Type of locking | Durchgangsloch |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
