09564615713 | Harting
D-Sub plug, 62 pole, high density, equipped, straight, solder pin, 09564615713
Unit Price (€ / pc.)
10.4006 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

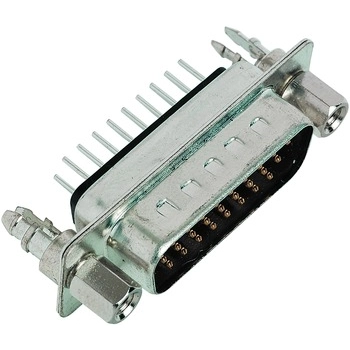

D-Sub plug, 09564615713, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Shell material: Steel, nickel-plated
- Contact material: Copper alloy
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Anforderungsstufe | 1 | |
| Ausführung | Stiftleiste | |
| Befestigung (Rückseitig) | Durchgangsloch | |
| Bestückung | bestückt | |
| Kontaktanschluss | Einlötstift | |
| Montage | gerade | |
| Polbild | High density | |
| Polzahl | 62-polig | |
| Rastermaß | 2.41 mm | |
| Verriegelung | Gewindeschraube 4-40 UNC |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
