09642127240 | Harting

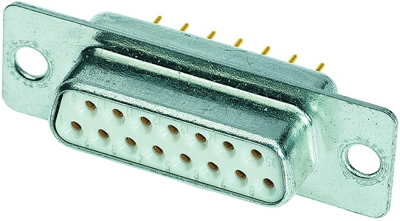

D-Sub socket, 15 pole, standard, equipped, straight, solder pin, 09642127240
Unit Price (€ / pc.)
30.0951 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
D-Sub socket, 09642127240, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Shell material: Steel
- Contact material: Copper alloy
- Performance level: 2
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Anforderungsstufe | 2 | |
| Ausführung | Buchsenleiste | |
| Befestigung (Rückseitig) | Durchgangsloch | |
| Bestückung | bestückt | |
| Kontaktanschluss | Einlötstift | |
| Montage | gerade | |
| Polbild | Standard | |
| Polzahl | 15-polig | |
| Rastermaß | 2.74 mm | |
| Verriegelung | Durchgangsloch |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 85322400 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
