09651627811 | Harting

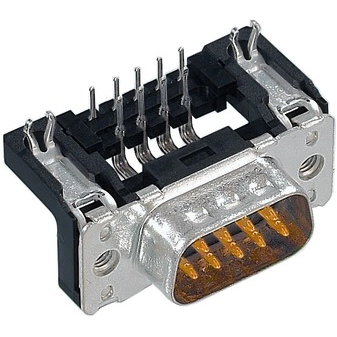

D-Sub plug, 9 pole, standard, equipped, angled, solder pin, 09651627811
Unit Price (€ / pc.)
2.8322 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
D-Sub plug, 09651627811, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- High performance
- Material flammability class acc. to UL 94: V-0
- Metal shell: Steel
- Performance level: 3
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Anforderungsstufe | 3 | |
| Ausführung | Stiftleiste | |
| Befestigung (Rückseitig) | Durchgangsloch | |
| Bestückung | bestückt | |
| Kontaktanschluss | Einlötstift | |
| Montage | abgewinkelt | |
| Polbild | Standard | |
| Polzahl | 9-polig | |
| Rastermaß | 2.74 mm | |
| Verriegelung | Gewindeeinsatz M3 |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
