09654236803 | Harting

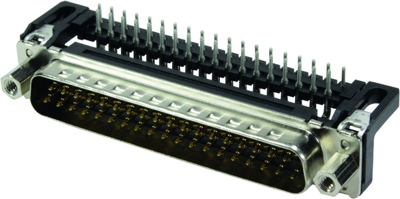

D-Sub plug, 37 pole, standard, equipped, angled, solder pin, 09654236803
Unit Price (€ / pc.)
7.9135 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
D-Sub plug, 09654236803, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- All-round protective metal shell
- Plated terminations for increased solderability
- Integrated plastic mounting bracket
- Performance level: 2
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Anforderungsstufe | 2 | |
| Ausführung | Stiftleiste | |
| Befestigung (Rückseitig) | Durchgangsloch | |
| Bestückung | bestückt | |
| Kontaktanschluss | Einlötstift | |
| Montage | abgewinkelt | |
| Polbild | Standard | |
| Polzahl | 37-polig | |
| Rastermaß | 2.76 mm | |
| Verriegelung | Gewindeschraube 4-40 UNC |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
