09662287701 | Harting
D-Sub plug, 15 pole, standard, equipped, straight, IDC connection, 09662287701
Unit Price (€ / pc.)
6.1047 € *
Available: 0 pcs.
Leadtime: 7 Weeks **

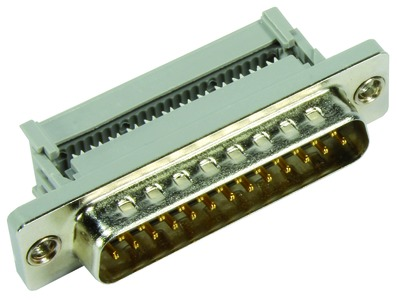

D-Sub plug, 09662287701, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Metal shell: Plated steel
- Contact material: Copper alloy
- Performance level: 3
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Anforderungsstufe | 3 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Kontaktanschluss | Schneidklemmanschluss | |
| Montage | gerade | |
| Polbild | Standard | |
| Polzahl | 15-polig | |
| Rastermaß | 2.77 mm | |
| Verriegelung | Gewindeeinsatz M3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
