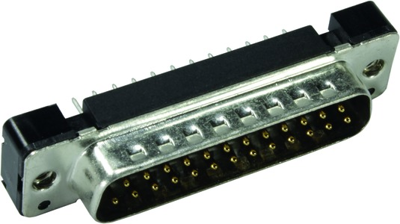

09663217702 | Harting

D-Sub plug, 25 pole, standard, equipped, straight, solder pin, 09663217702

Order No.: 44F6388
EAN: 4099889797398
MPN:
09663217702
09 66 321 7702
Series: D-Sub
09663217702 Harting D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
5.712 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
5.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.712 €

D-Sub plug, 09663217702, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • Material flammability class acc. to UL 94: V-0
  • Metal shell: Plated steel
  • Contact material: Copper alloy
  • Performance level: 3

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Performance level 3
Version Stiftleiste
Attachment (rear panel) Durchgangsloch
Additional parts bestückt
Contact connection Einlötstift
Assembly gerade
Pole image Standard
Pin number 25-polig
Grid 2.76 mm
Type of locking Gewindeeinsatz 4-40 UNC
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
