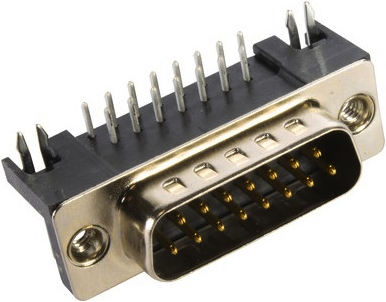

D-Sub plug, 15 pole, standard, equipped, angled, solder pin, 09682637811
Unit Price (€ / pc.)
2.5466 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
D-Sub plug, 09682637811, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- All-round protective metal shell
- Plated terminations for increased solderability
- Integrated plastic mounting bracket
- Performance level: 3
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Performance level | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Contact connection | Einlötstift | |
| Assembly | abgewinkelt | |
| Pole image | Standard | |
| Pin number | 15-polig | |
| Grid | 2.77 mm | |
| Type of locking | Gewindeeinsatz M3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
