09682637812 | Harting

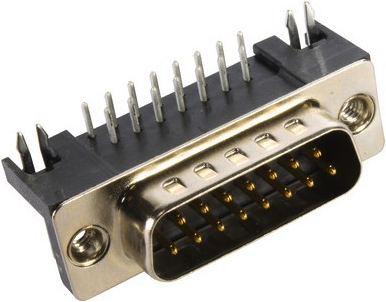

D-Sub plug, 15 pole, standard, equipped, angled, solder pin, 09682637812

Order No.: 44F7498
EAN: 4099889802221
MPN:
09682637812
09 68 263 7812
Series: D-Sub
09682637812 Harting D-Sub Connectors
Image may differ
Unit Price (€ / pc.)
2.2491 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
2.25 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.2491 €

D-Sub plug, 09682637812, HARTING

This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.

Features

  • All-round protective metal shell
  • Plated terminations for increased solderability
  • Integrated plastic mounting bracket
  • Performance level: 3

Applications

  • For data transmission
  • For signal applications
  • For power applications
Technical specifications
Performance level 3
Version Stiftleiste
Attachment (rear panel) Durchgangsloch
Additional parts bestückt
Contact connection Einlötstift
Assembly abgewinkelt
Pole image Standard
Pin number 15-polig
Grid 2.77 mm
Type of locking Gewindeeinsatz 4-40 UNC
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
