09695117247 | Harting

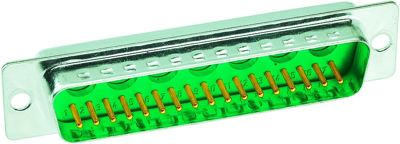

D-Sub plug, 24 pole, 24W7, equipped, straight, solder cup, 09695117247
Unit Price (€ / pc.)
8.4847 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
D-Sub plug, 09695117247, HARTING
This D-sub connector is an industry standard for cable-to-board connectivity applications and also can be universally used as a device interface.
Features
- Material flammability class acc. to UL 94: V-0
- Metal shell: Tin-plated steel
- Performance level: 3
Applications
- For data transmission
- For signal applications
- For power applications
Technical specifications
| Performance level | 3 | |
| Version | Stiftleiste | |
| Attachment (rear panel) | Durchgangsloch | |
| Additional parts | bestückt | |
| Contact connection | Lötkelch | |
| Assembly | gerade | |
| Pole image | 24W7 | |
| Pin number | 24-polig | |
| Grid | 2.84 mm | |
| Type of locking | Durchgangsloch |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
