02011601105 | Harting

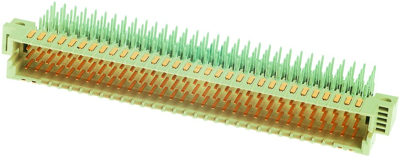

Male connector, 160 pole, z-a-b-c-d, pitch 2.54 mm, solder pin, angled, gold-plated, 02011601105
Unit Price (€ / pc.)
67.4135 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Male connector, 02011601105, Harting
Male connector, Reflow soldering termination (THR), Wave soldering termination, Rated current: 1 A, Contacts: 160, Angled, Copper alloy, Au over Ni Mating side, SnPb over Ni Termination side, Performance level: AU 50, 1, acc. to IEC 61076-4-113, PCB fixing: With fixing flange, Liquid crystal polymer (LCP), Beige
Technical specifications
| Performance level | 1 | |
| Connection | solder pin | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Contact row assignment | z-a-b-c-d | |
| Rated current | 1 A | |
| Orientation | angled | |
| Pin number | 160 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | No |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
