09022326825 | Harting
Female connector, type B, 32 pole, a-b, pitch 2.54 mm, solder pin, straight, 09022326825
Unit Price (€ / pc.)
4.0698 € *
Available: 130 pcs.
Leadtime: 10 Weeks **

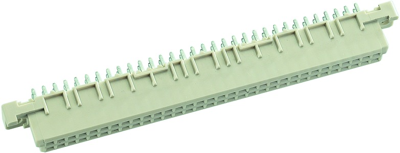

Female connector, 09022326825, Harting
Female connector, Wave soldering termination, Rated current: 2 A, Contacts: 32, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Anforderungsstufe | 2 | |
| Anschluss | Lötstift | |
| Bauform | B | |
| Kontaktart | Buchse | |
| Kontaktreihenbelegung | a-b | |
| Nennstrom | 2 A | |
| Orientierung | gerade | |
| Polzahl | 32-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
