09022646821 | Harting

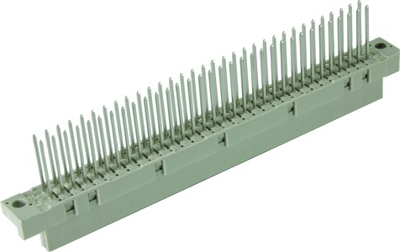

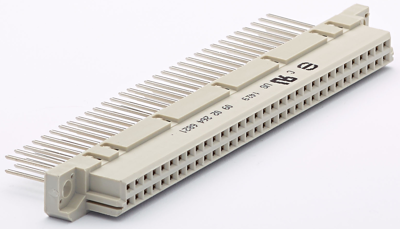

Female connector, type B, 64 pole, a-b, pitch 2.54 mm, wire-wrap, straight, gold-plated, 09022646821
Unit Price (€ / pc.)
7.1638 € *
Available: 60 pcs.
Leadtime: 6 Weeks **
Total Price:
7.16 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1638 €
10 pcs.
6.5926 €
50 pcs.
5.9976 €
100 pcs.
5.4026 €
*incl. VAT plus shipping costs
**Subject to prior sale
Female connector, 09022646821, Harting
Female connector, Wrap termination, Rated current: 2 A, Contacts: 64, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Anforderungsstufe | 2 | |
| Anschluss | Wire-Wrap | |
| Bauform | B | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Kontaktreihenbelegung | a-b | |
| Nennstrom | 2 A | |
| Orientierung | gerade | |
| Polzahl | 64-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | FI |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
