09031646921 | Harting

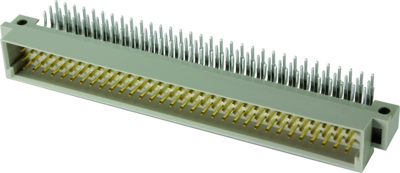

Male connector, type C, 64 pole, a-c, pitch 2.54 mm, solder pin, angled, gold-plated, 09031646921
Unit Price (€ / pc.)
2.9155 € *
Available: 830 pcs.
Leadtime: 2 Weeks **
Total Price:
2.92 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9155 €
10 pcs.
2.5704 €
100 pcs.
2.2610 €
250 pcs.
2.1777 €
1000 pcs.
2.0349 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 09031646921, Harting
Male connector, Wave soldering termination, Rated current: 2 A, Contacts: 64, Angled, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, Side coding, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

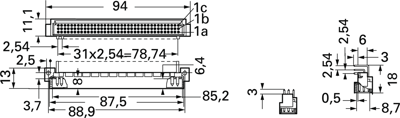

Technical specifications
| Performance level | 2 | |
| Connection | solder pin | |
| Design | C | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Contact row assignment | a-c | |
| Rated current | 2 A | |
| Orientation | angled | |
| Pin number | 64 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
