09032326821 | Harting
Female connector, type C, 32 pole, a-c, pitch 2.54 mm, wire-wrap, straight, gold-plated, 09032326821
Unit Price (€ / pc.)
7.7945 € *
Available: 0 pcs.
Leadtime: 1 Week **

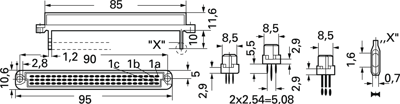

Backplane connector C, female, straight, wire-wrap posts, type 0903.
With 13 mm wire-wrap posts, 0.6 x 0.6 mm, performance class 2. Operating current: max. 2.0 A. Test voltage: 1000 V. Smallest air gap: 3.0 mm. Shortest creepage distance: 4.0 mm. Contact resistance: max. 20 mohm. Insulation resistance: min. 1000 Gohm. Basic grid: 2.54 mm. Insulator: thermoplastic, glass fiber-reinforced. Contact material/finish: copper alloy/gold-plated. Tinned terminals (SnPb). Standards and certifications: DIN 41612, IEC 603-2, BS 9525, VG 95324, UL-listed, MiL-C-55302, BT 222, BS 9525, He 12.
Type: 2326821, 32-pole, a-c
Technical specifications
| Connection | wire-wrap | |
| Design | C | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Contact row assignment | a-c | |
| Rated current | 2 A | |
| Orientation | straight | |
| Pin number | 32 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | FI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
