09032426805 | Harting

Female connector, type M, 42 pole, a-b-c, pitch 2.54 mm, solder pin, straight, 09032426805

Order No.: 44F462
EAN: 4099891015961
MPN:
09032426805
09 03 242 6805
Series: DIN 41612
Harting
09032426805 Harting DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
6.1642 € *
Available: 16 pcs.
Leadtime: 10 Weeks **
Total Price:
6.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
6.1642 €

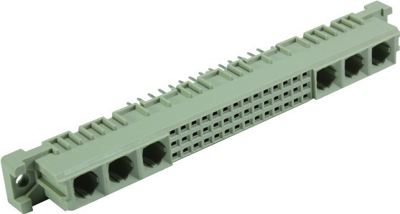

Female connector, 09032426805, Harting

Female connector, Wave soldering termination, Rated current: ‌2 A, Contacts: 48, Straight, Copper alloy, Noble metal over Ni Mating side, Sn over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Performance level 2
Connection solder pin
Design M
Contact type socket
Contact row assignment a-b-c
Rated current 2 A
Orientation straight
Pin number 42 pole
Grid 2.54 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
