09032642850 | Harting

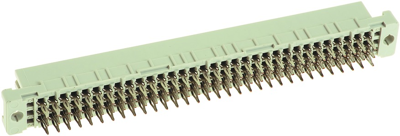

Female connector, type C, 64 pole, a-c, pitch 2.54 mm, press-in connection, straight, gold-plated, 09032642850
Unit Price (€ / pc.)
2.5109 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Female connector, 09032642850, Harting
Female connector, Press-in termination, Rated current: 2 A, Contacts: 64, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Anforderungsstufe | 1 | |
| Anschluss | Einpressanschluss | |
| Bauform | C | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Kontaktreihenbelegung | a-c | |
| Nennstrom | 2 A | |
| Orientierung | gerade | |
| Polzahl | 64-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
