09032646878 | Harting

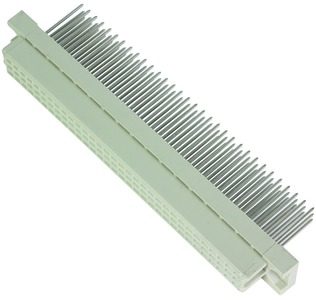

Female connector, type C, 64 pole, a-b-c, pitch 2.54 mm, wire-wrap, straight, gold-plated, 09032646878
Unit Price (€ / pc.)
5.8786 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Female connector, 09032646878, Harting
Female connector, Wrap termination, Rated current: 2 A, Contacts : 64, Straight, Copper alloy, Noble metal over Ni Mating side, Noble metal over Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Performance level | 2 | |
| Connection | wire-wrap | |
| Design | C | |
| Contact type | socket | |
| contact surface | gold-plated | |
| Contact row assignment | a-b-c | |
| Rated current | 2 A | |
| Orientation | straight | |
| Pin number | 64 pole | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | FI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
