09032647828 | Harting

Female connector, type C, 64 pole, a-b-c, pitch 2.54 mm, IDC connection, straight, gold-plated, 09032647828

Order No.: 44F497
EAN: 4099891016227
MPN:
09032647828
09 03 264 7828
Series: DIN 41612
Harting
09032647828 Harting DIN PCB Connectors

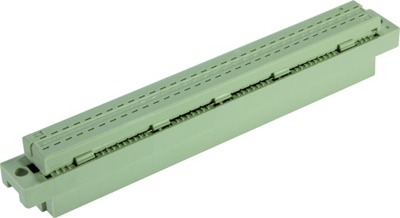

Image may differ
Unit Price (€ / pc.)
12.8282 € *
Available: 48 pcs.
Leadtime: 1 Week **
Total Price:
12.83 € *
Price list
Quantity
Price per unit*
1 pcs.
12.8282 €
10 pcs.
11.8048 €
50 pcs.
10.7338 €
100 pcs.
9.6628 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female connector, 09032647828, Harting

Female connector, IDC insulation displacement termination, Rated current: ‌1 A, Contacts: 64, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 3, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)

Technical specifications
Performance level 3
Connection IDC connection
Design C
Contact type socket
contact surface gold-plated
Contact row assignment a-b-c
Rated current 1 A
Orientation straight
Pin number 64 pole
Grid 2.54 mm
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
