09032647850 | Harting
Female connector, type C, 64 pole, a-b-c, pitch 2.54 mm, press-in connection, straight, gold-plated, 09032647850
Unit Price (€ / pc.)
2.2372 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

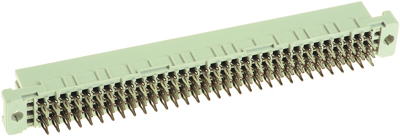

Female connector, 09032647850, Harting
Female connector, Press-in termination, Rated current: 2 A, Contacts: 64, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 3, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Design | C | |
| Contact type | Buchse | |
| Pin number | 64-polig | |
| Contact row assignment | a-b-c | |
| Grid | 2.54 mm | |
| Connection | Einpressanschluss | |
| Orientation | gerade | |
| contact surface | vergoldet | |
| Rated current | 2 A | |
| Performance level | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
