09032648825 | Harting

Female connector, type C, 64 pole, AC, pitch 2.54 mm, solder pin, straight, gold-plated, 09032648825

Order No.: 42P1813
EAN: 5713140196407
MPN:
09032648825
09 03 264 8825
Series: DIN 41612
Harting
09032648825 Harting DIN PCB Connectors
Image may differ
Print
Key Specification:
Design C
Contact type socket
Pin number 64 pole
Contact row assignment AC
Grid 2.54 mm
Show 23 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
13.0781 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Add to Cart
Total Price:
13.08 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
13.0781 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

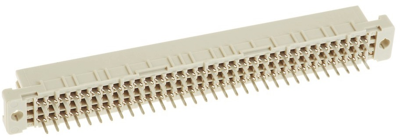

Female connector, 09032648825, Harting

Female connector with wave soldering termination, straight, coding with loss of contacts, PCB fixing: with fixing flange.
Technical specifications
Performance level 1
Connection solder pin
Design C
Contact type socket
contact surface gold-plated
Contact row assignment AC
Rated current 2 A
Orientation straight
Pin number 64 pole
Grid 2.54 mm
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
