09032966821 | Harting
Female connector, type C, 96 pole, a-b-c, pitch 2.54 mm, wire-wrap, straight, gold-plated, 09032966821
Unit Price (€ / pc.)
13.3994 € *
Available: 145 pcs.
Leadtime: 1 Week **
Total Price:
13.40 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3994 €
10 pcs.
11.7929 €
50 pcs.
10.9837 €
150 pcs.
10.5077 €
500 pcs.
9.9841 €
*incl. VAT plus shipping costs
**Subject to prior sale

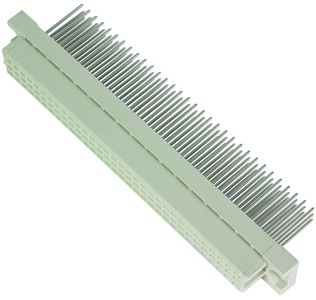

Female connector, 09032966821, Harting
Female connector, Wrap termination, Rated current: 2 A, Contacts: 96, Straight, Copper alloy, Noble metal over Ni Mating side, Ni Termination side, Performance level: 2, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Technical specifications
| Anforderungsstufe | 2 | |
| Anschluss | Wire-Wrap | |
| Bauform | C | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Kontaktreihenbelegung | a-b-c | |
| Nennstrom | 2 A | |
| Orientierung | gerade | |
| Polzahl | 96-polig | |
| Rastermaß | 2.54 mm |
Download
Logistics
| Ursprungsland | FI |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
